Seismic surveys

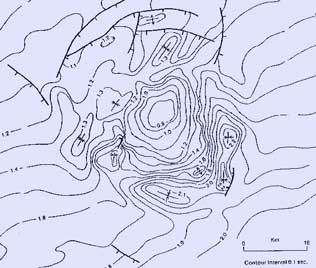

Seismic reflection and refraction measurements belong to the most powerful tools geophysicists have to hand. This applies also to the investigation of impact structures. However, seismic surveys are in general cost-intensive, and that is why they are rarely done in this field of predominantly scientific interest. On the other hand, burried impact structures have been detected and investigated by seismic surveys carried out for oil companies (for example the Steen River structure in Canada and the Silverpit structure in the southern North Sea). The image below shows a seismic time structure map (modified from Jansa, L. F. et al. (1989): Montagnais: A submarine impact structure on the Scotian Shelf, eastern Canada. - Geol. Soc. Am. Bull., 101, 450-463.) of the submarine Montagnais impact structure which has been recognized from seismic reflection data during oil exploration.

As early as in the sixties, extensive seismic surveys were carried out in the Ries impact structure in Germany. At that time, the 26 km-diameter Ries crater was highly disputed by advocates of an endogenetic, volcanic-explosion origin and, on the other hand, by advocates of a formation by meteorite impact. This debate initiated new campaigns of gravity, magnetic, seismic and geoelectric surveys, which contributed to the recognition of the impact origin and to a detailed knowledge of the internal structure of the crater.

The seismic surveys comprised refraction as well as reflection measurements. The location of a seismic refraction profile with respect to the gravity residual anomaly (see Gravity surveys) is shown in the image below.

The travel times observed along this profile have been modelled by calculated travel times for a crater model shown in the image below (modified from Ernstson, K. & Pohl, J. (1977): Neue Modelle zur Verteilung der Dichte und Geschwindigkeit im Ries-Krater [New density and velocity distribution models for the Ries crater ]. - Geologica Bavarica, 75, 355-371.). For comparison, a travel-time curve for an off-crater vertical velocity distribution is plotted, and as can be seen from the image below, travel-time residuals up to 0.4 sec are produced by the

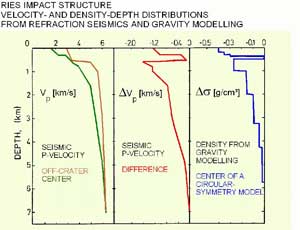

velocity decrease in the rocks in the crater area. Both the velocity-depth distribution for the crater center and the off-crater area, as well as the related difference are plotted in the image below. For comparison, also

the density-depth distribution from a gravity modelling (see image below) of the Bouguer residual anomaly is plotted. The graphs show that at the center of the Ries structure, lowered densities and velocities from impact fracturing can still be identified at depths of at least 5 - 6 km.

Reflection seismics in the Ries crater area

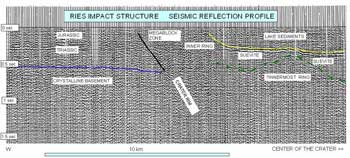

The seismic-reflection profile (image below; modified from Angenheister, G. & Pohl, J. (1969): Die seismischen Messungen im Ries von 1948 - 1969 [Seismic investigations in the Ries Crater (1948 - 1969)]. - Geologica Bavarica, 61, 304-326.) radially running from the west to the center of the crater nicely shows details of the geologic anomaly which an impact structure may produce in a "normal" geologic environment. In the case of the Ries impact, the target consisted of roughly 600 m well-bedded sedimentary rocks (predominantly Triassic and Jurassic) overlying the crystalline basement (granites, metamorphic rocks). The crater rim can be seen by a sudden break of the seismic reflectors merging into a megablock zone without significant seismic energy correlations. The upper and lower boundary of the suevite layer can be traced to suggest the existence of an innermost ring, in good agreement with the results of a geomagnetic and a geoelectric survey (see Geoelectric surveys). Within the inner ring of the crater, the base of the post-impact lake sediments is the most prominent seismic reflector.
