Ries crater impact outcrops

The Ries impact crater is one of the best investigated terrestrial impact structures which is not so much related with its impact character in itself. Already in the 19th century the Ries crater (or Nördlinger Ries) was considered a geologic anomaly, and well until the 20th century many scientific controversies about its origin were fought out based on an extensive and thorough geologic mapping and early geophysical measurements. Apart from a few tectonic and glacial hypotheses, various volcanic processes were debated, and finally a central giant volcanic diatreme explosion became solid textbook knowledge. Until the early sixties. At that time the US geologists E.M. Shoemaker and E.C.T. Chao established the shock-produced SiO2 high-pressure polymorphs coesite and stishovite in the classic “volcanic” suevite rocks. The opposition of most geologists was vehement but in the end was unable to prevent that the Ries crater began its “impact life”. Today, the impact nature of the Ries crater has generally been accepted, although some cordial dislike of meteorite impact is still to be observed among geologists.

Interestingly (or strangely?) yet in 2003 in an abstract contribution to the annual meeting of the Geological Society of America


the author Richard A. Zimmerman, rehashing the old story, postulated a diatremic formation of the Ries crater. In the Otting Bunte breccia-suevite quarry (equivalent to the Aumühle outcrop, see below) he observed a time lapse with some reworking between the two units (see Fig. 5) and concluded a repetitive action compatible with volcanism but incompatible with impact. More about this classic geological debate on impact structures and their combating may be read HERE.

From the many quarries in the Ries crater region that in the early period of geologic investigation gave abundant insight into the cratering and depositional processes only few are still active exposing new views at times. These are, e.g., the limestone quarries located at Gundelsheim, Ronheim and Harburg where the Bunte breccia ejecta overburden has continuously to be removed. From the at one time numerous suevite quarries only a single one (Aumühle, see below) is exploited at times.

To prevent the complete disappearance of classic Ries outcrops and quarries the authorities have established a geologic educational trail, and also a geopark addresses the geologically interested parties.


The Gundelsheim limestone quarry

Ries crater ejecta Bunte breccia GundelsheimFig. 1. Bunte (= multicolored) breccia ejecta on top of Malmian limestones. Gundelsheim quarry, roughly 21 km from the crater center. The emplacement of the ejecta caused prominent striation marks uncovered in the foreground.

Fig. 2. Bunte (= multicolored) breccia ejecta on top of Malmian limestones. Gundelsheim quarry; different view.

Fig. 3. Malmian limestones; prominent striation marks from erosive landing of the Bunte breccia impact ejecta. Gundelsheim quarry. Similar sets of striations have been observed at various places in the surroundings of the Ries crater, and from measurements of the strike directions an intersection in the center of the Ries basin was obtained.


Aumühle suevite quarry

Aumühle is the only suevite exposure in the Ries impact structure which is currently exploited for the cement industry supplying aggregate for underwater purposes.

Ries crater, suevite over Bunte breccia ejecta, Aumühle quarryFig. 4. Suevite (grayish) in contact with and overlying Bunte breccia ejecta. Aumühle quarry; roughly 12 km from the crater center.

Ries crater, suevite over Bunte breccia ejecta, Aumühle detailFig. 5. Detail: suevite over Bunte Breccia ejecta; Aumühle outcrop. Apart from a thin transition zone (whitish) the sharp contact between the Bunte breccia ejecta and the overlying suevite ejecta without any mixing proves a lacking erosive component of emplacement of the suevite and points to steep excavation and landing trajectories and a fallout deposition of the suevite. – The widely spaced horizontal and vertical joints may be cooling fractures that developed after emplacement and solidification of the hot suevite body. A platy vertical jointing within a suevite deposit that is assumed to also result from cooling is exposed near Cucalón in the Azuara impact structure, Spain. A photo may be clicked HERE.

Ries crater, suevite in contact with Bunte breccia ejecta, Aumühle quarryFig. 6. One more detail: Aumühle quarry – suevite in contact with Bunte breccia ejecta composed of sedimentary rocks from Keuper and Liassic/Dogger.

Ries crater, suevite quarry, Aumühle locationFig. 7. Massive suevite body in the Aumühle quarry. The blocky jointing is particularly evident. – Columnar segregation of the suevite similar to basaltic columns can be observed in one of the abandoned suevite quarries near Oberringingen.

degassing pipes in suevite, Aumühle quarry, Ries craterFig. 8. The arrows point to proposed degassing pipes (or channels) that could have developed when the suevite cooled after emplacement of the hot mass.


The Limberg quarry near Unterwilflingen

The Limberg quarry is located in the megabreccia zone between the structural crater rim and the inner or so-called crystalline ring wall. The mixed crystalline – sedimentary target enables a much better reconstruction of the imapct cratering process than do purely crystalline targets. The crystalline rocks of the inner ring were uplifted by at least 600 m which is the thickness of the sedimentary sequence.

Ries crater megabreccia zone between the structural rim and the inner ring, Limberg quarry near UnterwilflingenFig. 9. The megabreccia zone between structural rim and inner ring (Limberg quarry, near Unterwilflingen): multicolored Keuper sediments (to the left), strongly corroded suevite (?, or glass-carrying polymictic dike breccia), and grit-brecciated granitic rocks.

Fig. 10. Limberg quarry in winter showing much better the variegation of the ejecta mixture.

Ries crater Limberg quarry megabreccia detail Fig. 11. Detail of the corroded suevite or, alternatively, of the polymictic glass-carrying dike breccia injected into the uplifted crystalline rocks.


The Wengenhausen abandoned quarry

The Wengenhausen abandoned quarry as part of the geologic educational trail belongs to the inner or crystalline ring wall and can tell a story about the Ries impact as indicated below in Fig. 12.

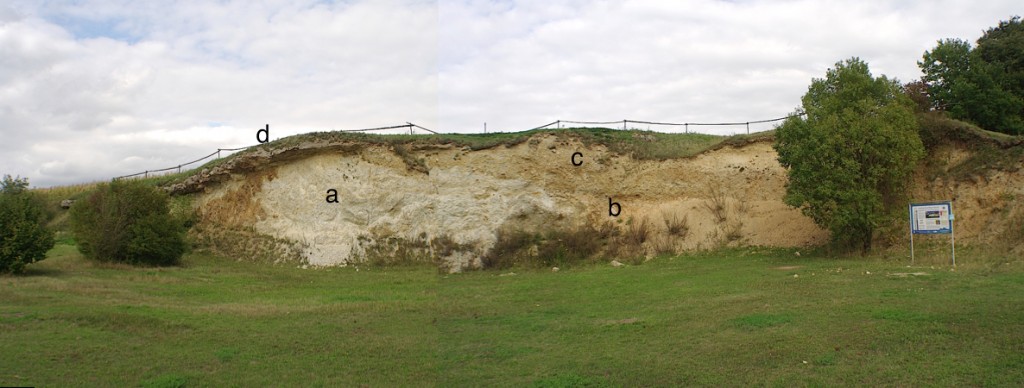

Ries impact crater Wengenhausen abandoned quarry inner ringFig. 12. Wengenhausen abandoned quarry (now a geotope), inner ring of the Ries crater. a = heavily shattered crystalline rock (granitoid); b = paltry remnants of a hornblende kersantite dike where in the past nice shatter cones could be taken out; c = polymictic crystalline breccia; d = fossil-rich limestone that formed in the post-impact Ries crater lake.

Wengenhausen quarry, inner ring, Ries crater, close viewFig. 13. Detail of the layering in the Wengenhausen outcrop: light granitic rock is overlain by a polymictic crystalline breccia (brownish) and post-impact carbonate lake sediments.

best developed shatter coning in hornblende kersantite, Wengenhausen, Ries craterFig. 14. One of the nicer shatter cones with fine horsetail fracture markings from the Wengenhausen hornblende kersantite that meanwhile is practically completely exploited. More shatter cones in crystalline rocks from the Ries crater can be seen on the special Shatter cone page together with lots of shatter cones from other impact structures worldwide. – Interestingly, not any shatter cones have so far been found in sedimentary rocks from the Ries crater; particularly the fine-grained Malmian limestones are void of them (unlike the abundant shatter cones in the Malmian of the companion Steinheim impact crater). W suggest a reasonable explanation related with the so-called interference zone in the upper part of the impacted target (Melosh 1989). In these top layers the compressive shock waves are superimposed by tensile rarefaction waves (originating from shock reflection at the free surface) strongly reducing the shock peak pressure. And in the Ries crater the Malmian limestones were more or less coextensive with this interference zone where the shock pressures were not enough for a shatter cone production. Only in the deeper crystalline rocks below the interference zone shatter coning was possible as we see in the Wengenhausen outcrop. We must not wonder about the Wengenhausen shatter cones exposed at the surface. Shatter coning as an immediate shock effect happened in the very first stage (contact and compression stage) of impact cratering and was completed before the crystalline rocks were uplifted in the then following excavation and modification stages. [Also see here: Understanding the impact cratering process – a simple approach]


The Romheim limestone quarry

Ries crater, Bunte breccia ejecta over autochthonous Malmian limestones, Ronheim quarryFig. 15. Bunte breccia ejecta on top of Malmian limestones. Ronheim quarry, near the southeastern crater rim.

Ries crater, Bunte breccia ejecta, general view, Ronheim quarryFig.16. Different view of the Ronheim Bunte breccia ejecta outcrop. The Ronheim images must be considered a snapshot in time because in the course of the limestone exploitation the breccia overburden is continuously being removed.

Ries crater, Bunte breccia ejecta, detail from the Ronheim quarryFig. 17. The Bunte breccia in detail; Ronheim quarry. The multicolored mixture of various sedimentary and crystalline components frequently in immediate contact are evidence of the very complex excavation trajectories that brought together rocks of stratigraphically far-off positions in the impact target.

Bunte breccia ejecta, Ries crater, Ronheim quarryFig. 18. More evidence of the typical Bunte breccia ejecta composition.

Ries crater, closeup of the typical Bunte breccia impact ejecta, mixture of sedimentary and crystalline componentsFig. 19. The mixture within the Bunte breccia ejecta comprises all size classes down to gravel and sand fraction.

Ries crater, Bunte breccia ejecta, detail from the Ronheim quarry, Malmian limestone in multicolored slatesFig. 20. A bigger block of Malmian limestone with preserved bedding within Keuper and Liassic/Dogger sandstones and claystones.

Ries crater, Bunte breccia ejecta, detail from the Ronheim quarry, gneiss cobble in slatesFig. 21. Close-up: typical small-scale brecciation and mixture, here a rounded gneiss fragment in multicolored clayey material.

Ries impact crater, Bunte breccia ejecta, flow texture, Ronheim quarryFig. 22. Detail showing fluidal texture of the Bunte breccia (temporarily exposed).


The Iggenhausen limestone “gravel” quarry

A prominent part of the Ries crater extended ejecta blanket is occupied by big allochthonous megablocks sized up to 1 km or more which in part must have been ejected over a distance of 10 km at least. For early geologists considering the Ries crater as unquestionably volcanic these giant dislocated megablocks, sometimes bottom up, remained enigmatic. The internal constitution of these megablocks may be quite different. Completely inverted Malmian megablocks may fully have preserved bedding and karst features (like the Oppertshofen 1 km big inverted megablock) while others although equally coherent show heaviest interior fragmentation down to grit brecciation and mortar texture. The Iggenhausen megablock and quarry is a typical example:

Ries crater, Iggenhausen dislocated megablock, monomictic movement brecciaFig. 23. Dislocated megablock of Malmian limestone showing grit brecciation and mortar texture (monomictic movement breccia). Iggenhausen quarry; 22 km from the crater center.

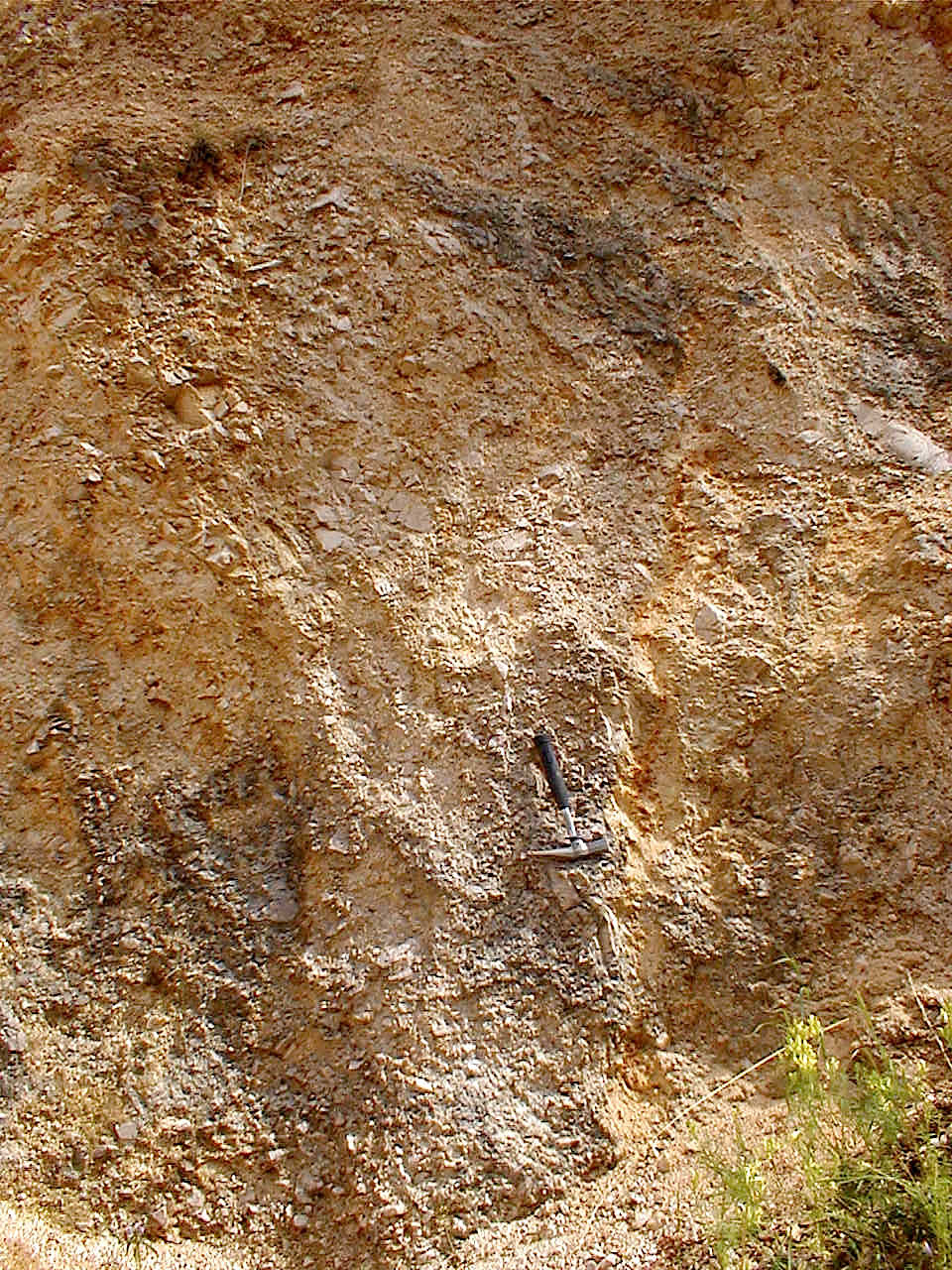

Ries crater, Iggenhausen dislocated megablock, monomictic movement breccia, detailFig. 24. Closer view of the enormous interior fragmentation of the Malmian limestones.

heavy columnar and platy brecciation in an allochthonous megablock, Ries crater, Iggenhausen

Fig. 25. Columnar/platy fragmentation of the Malmian limestones in the Iggenhausen quarry. A similar fragmentation from the Azuara impact structure in Spain is shown below in Fig. 26.

characteristic columnar-platy impact fragmentation, Azuara impact structure, near BelchiteFig. 26. For comparison: Very similar columnar/platy jointing in Jurassic limestones in the outer rim zone of the Azuara impact structure, north of Belchite. This voluminous (over hundreds of meters) kind of rock fragmentation has nothing to do with any tectonics but must be considered a characteristic impact feature possibly originating from the interaction of compressive shock and tensile rarefaction waves.

Ries crater, Iggenhausen dislocated megablock, monomictic movement breccia, grit brecciationFig. 27. Closer view of the grit brecciation in the Iggenhausen dislocated megablock.

comparison of grit brecciation in impact affected megablocks, Ries crater and Rubielos de la Cérida impact basinFig. 28. Iggenhausen quarry and  a grit-brecciated block in the megabreccia zone of Barrachina, Rubielos de la Cérida impact basin, Spain: quite similar monomictic movement breccias.


The Gosheim abandoned limestone quarry

The abandoned quarry is located at the eastern crater rim and exposes a dislocated and overturned limestone megablock.

Ries impact crater, inverted Malman limestone block, crater rim at GosheimFig. 29. A bed of closely spaced platy jointing of the Malmian limestone is exposed – obviously an impact-related deformation.

 Ries impact crater, inverted Malman limestone block, crater rim at Gosheim, detail of platy jointingFig. 30. Gosheim quarry at the eastern crater rim: overturned Malmian limestone block with impact-produced platy jointing that is overprinting the normal pre-impact regional joint system.

platy impact-induced jointing of Jurassic marlstones, Azuara impact structuresFig. 31. Comparable impact-induced platy jointing in marlstones north of Aguilón, Azuara impact structure, Spain.

The Wemding limestone quarry

This large limestone quarry is located immediately at the eastern crater rim from time to time, depending on the exploiting progress, exposing a spectacular geologic setting. The photographs from below have been taken in 2001.

Ries impact crater, peculiar structural deformations at the crater rim, WemdingFig. 32. At the eastern crater rim (large limestone quarry in Wemding; formerly: Schneider). The abrupt horizontal and vertical change from well-bedded largely untouched limestone layers to strongly folded and heavily fractured rocks is remarkable and incompatible with any normal tectonic concept.

Ries impact crater, peculiar structural deformations at the crater rim, WemdingFig. 33. Different view of the peculiar geologic setting in the Wemding limestone quarry.

Ries impact crater, peculiar structural deformations at the crater rim, WemdingFig. 34. Another view of the abrupt transition: impact geology.

The Altebürg disused suevite quarry

The Altebürg disused suevite quarry is located just outside the southwestern crater rim, and geologically and historically it is interesting because one of the many disputes between impact and volcanic-explosion advocates were fought out here in the sixties.

Fig. 35. The disused suevite quarry. Upper right the vertical contact between the suevite and the bedded, probably allochthonous Malmian limestone is exposed. To the left outside the image the suevite is edged by Malmian limestones, too. At times when the Ries crater was undoubtedly considered a volcanic explosion structure and the suevite the very characteristic Ries volcanic rock, the Altebürg setting was interpreted as a typical volcanic vent. Even when the shock-produced coesite and stishovite high-pressure modifications had been established by Chao and Shoemaker and the Ries had evolved into a big meteorite crater, skeptical geologists had still to be convinced. Therefore a program of about 20 boreholes were drilled in the area of the Altebürg quarry all of whom drilled multicolored smashed impact rocks in minor depth below the suevite proving that the suevite came from above and not from below.  – The quarry is also well known because here the building stones for the St. Georg church in Nördlingen were exploited.

The Oppertshofen limestone quarry

The very large dislocated megablocks in the environs of the Ries crater were one of the greatest enigmas geologists were originally confronted with at times when the Ries was generally considered a volcanic explosion structure. How could a volcanic explosion be able to throw kilometer-sized coherent blocks over distances of more than 10 km? The answer came in the sixties with the identification of the Ries as a large impact structure implying a giant energy release.

Oppertshofen limestone quarry in an ejected Ries crater megablock

Fig. 36. The Oppertshofen limestone quarry in the 1 km seized overturned megablock.

At Oppertshofen, some 7 km distant from the Ries crater rim, a big 1 km sized Malmian limestone megablock has been mapped to lie there completely overturned. We point to the fact that this coherent 1 km Oppertshofen megablock with fully preserved bedding and karst structures must have been overturned and moved over a distance of at least 7 km in the process of the impact event.

Oppertshofen megablock Ries impact crater

Fig. 37. Exploitation of the Malmian limestone in the Oppertshofen quarry located in the overturned megablock ejected from the Ries impact crater.
